Product Description

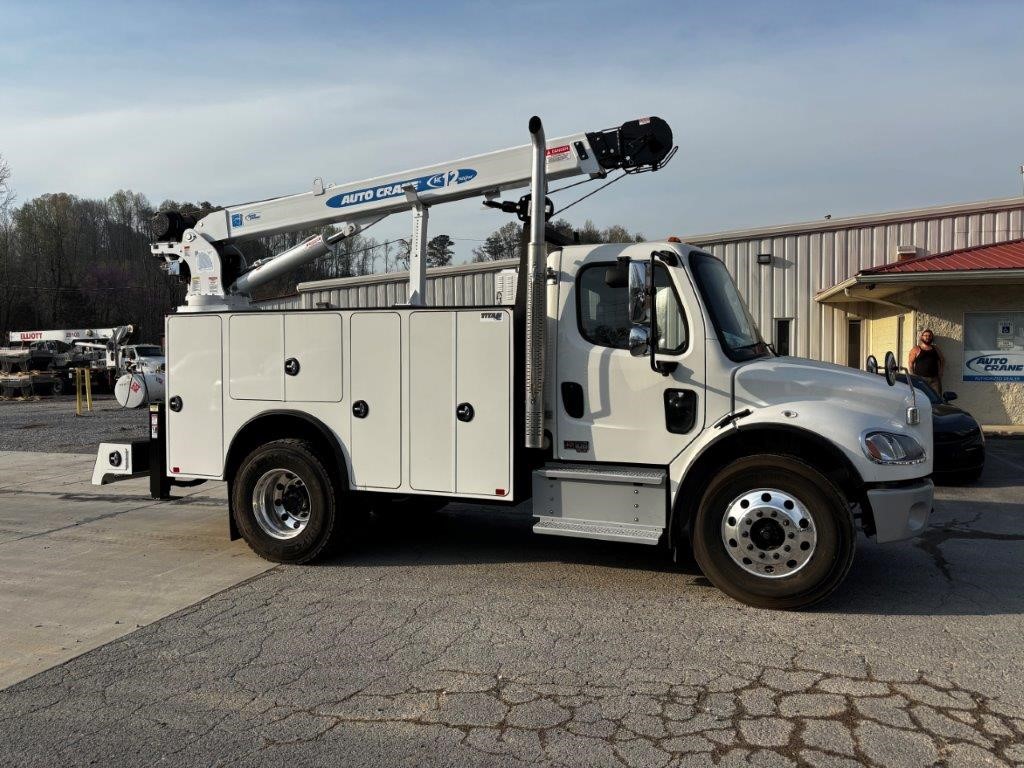

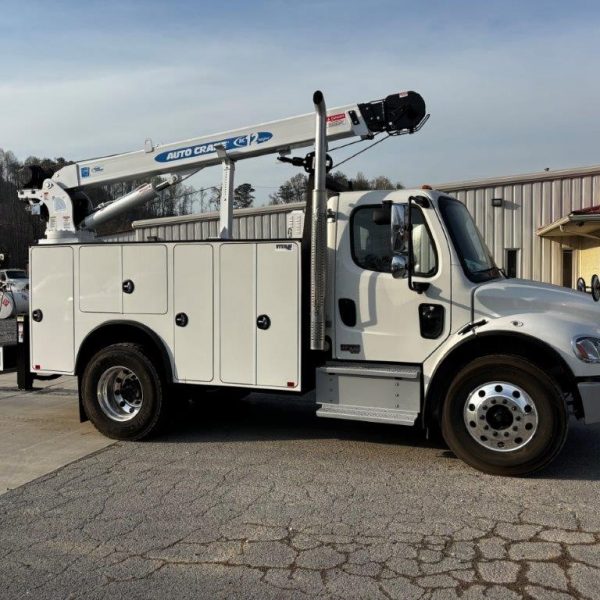

2025 Freightliner M2 106 (26K GVW)
VIN: 1FVACWFC9SHVP6307
Auto Crane Titan 85 Body
Auto Crane HC12 Nexstar IV Crane
Van Air RC40L Compressor
Auto Crane Titan 85 Body
• Titan 85 / 84CA 58” Tall Right Side Crane 11’ Body Length
• One piece 10 gauge A40 galvanneal side-pack design
• 12 gauge A40 galvanneal tread plate on tops and cargo area
• Fully Adjustable shelving package (250 lb. capacity)
• Three angled oval lights on the rear of the body
• Integral crane reinforcement up to 60,000 ft. lbs.
• Large 18” rubber grab handles
• Wheel Housing Fenderette
• Flush door panels with bulb seal gasket
• Three-point latching system
• Rugged durable interlocking channel frame
• Rounded door corners
• Backup alarm
• ICC Kit, and Fire Extinguisher in chassis cab
• Primed inside and outside with universal weathering polyurethane primer
• Full body undercoating
Compartment Equipment & Accessories
• Oxy / Act – 58” Tall divided compartment w/torch bottle tie down
• 2” drop well to accommodate tall torch bottles
• 3 adjustable shelves in vertical compartments
• 1 adjustable shelf in horizontal compartments
• 1 large metal vent, oxygen acetylene compartment
• Master Lock for Compartments
• 9 Drawer CTech Unit – 5-3”, 2-5”, 2-7”, black aluminum… fills street side front compartment
Hydraulic Power Package
• PTO, pump, hydraulic oil, reservoir tank with in-tank filter, vent fill cap, sight gauge
Crane Equipment & Accessories
• Auto Crane Model HC-12 FM NexStar IV 12,000 lb. capacity, 85,000 ft. lb and 30 ft reach
• 100% of crane’s load capacity, in the full range of the permitted lifting radius. Work not permitted over the Cab
• 100% stability
• Power boom elevation, power hoist, power rotation and power extension to 24 ft 11 in.
• Full proportional FM remote, filter sensor, and overload safety light
• Rotation Speed Control (RSC)
• 60 ft/min. single line speed planetary winch
• 10 GPM @ 3,000 PSI hydraulic requirement
• 120 ft. of 7/16” aircraft quality cable
• 370 degree rotation
• Automatic overload protection for hoist up, boom extend and boom down functions
• Heavy duty swivel block with latch
• -12 to 75 degree boom elevation
• Meets OSHA 1910.180 requirements and ANSI B30.5 safety standards
• Includes boom support
• Two year factory warranty
Outriggers & Accessories
• Full hydraulic outrigger assembly for curb side crane. For use with cranes up to 85,000 ft. lb. capacity
Chassis Equipment & Accessories
• Spring support for crane side of body
• PTO take off for Allison automatic transmission in lieu of standard manual transmission
• Electronic engine speed control-computer set-electronic engine
• 300 HP
• 3000 Allison transmission
• 2025 Freightliner M2 106 rated at 25,999K GVW… VIN 1FVACWFC9SHVP6307
• 4 x 2 Automatic transmission, diesel, 84”CA
Air Compressor Equipment & Accessories
• Van Air RC40-L Reliant Air Compressor
• Titan Trax channeling system on top of side packs for movable mounting locations
• Welder and compressor mounts not included unless requested
• Hose reel access out of rear compartment, grommetted
• Air tank 30G underdeck mounted. Includes air drain hose routed to outside of body, ball valve tank drain
• Air accessory package – ½” x 50’ air hose and spring rewind reel, ball stop, FLR (filter, lubricator, regulator)
Lighting Electrical Equipment & Accessories
• 4 exterior LED 12V flood lights ( Two Boom Tip, Two on included Light Bar, and Two at rear )
• Interior LED 12V strip lights for compartments
Painting Equipment & Accessories
• Auto Crane White painted on exterior and Zolatone on interior
• Auto Crane bedliner – cargo floor, compartment tops, sides, front bulkhead, tailgate and extension, bumper/workbench area, integrated steps
Center Deck Equipment
• 6 flush mount “D” ring tie-downs in bed floor
• E track 1 row each side
Rear Bumper & Accessories
• 30” heavy duty bumper with storage compartment and vise plate
• Class V 2” receiver hitch
• 7-way flat blade trailer plug
Miscellaneous Items
• Crane Inspection
• DOT Inspection
• Mud Flaps
