Product Description

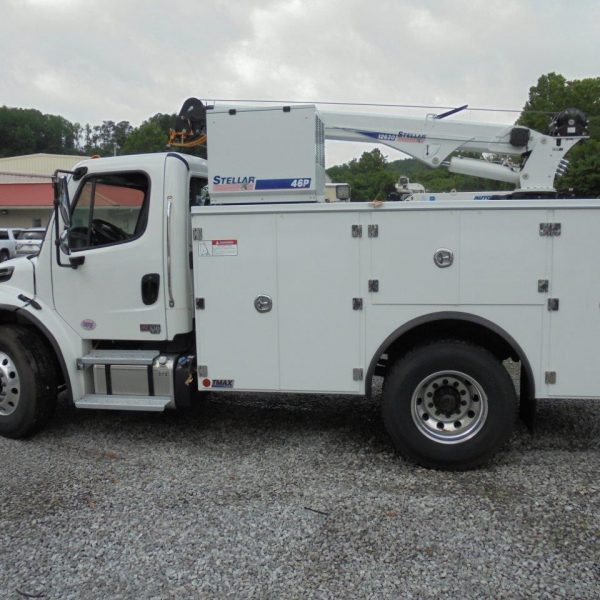

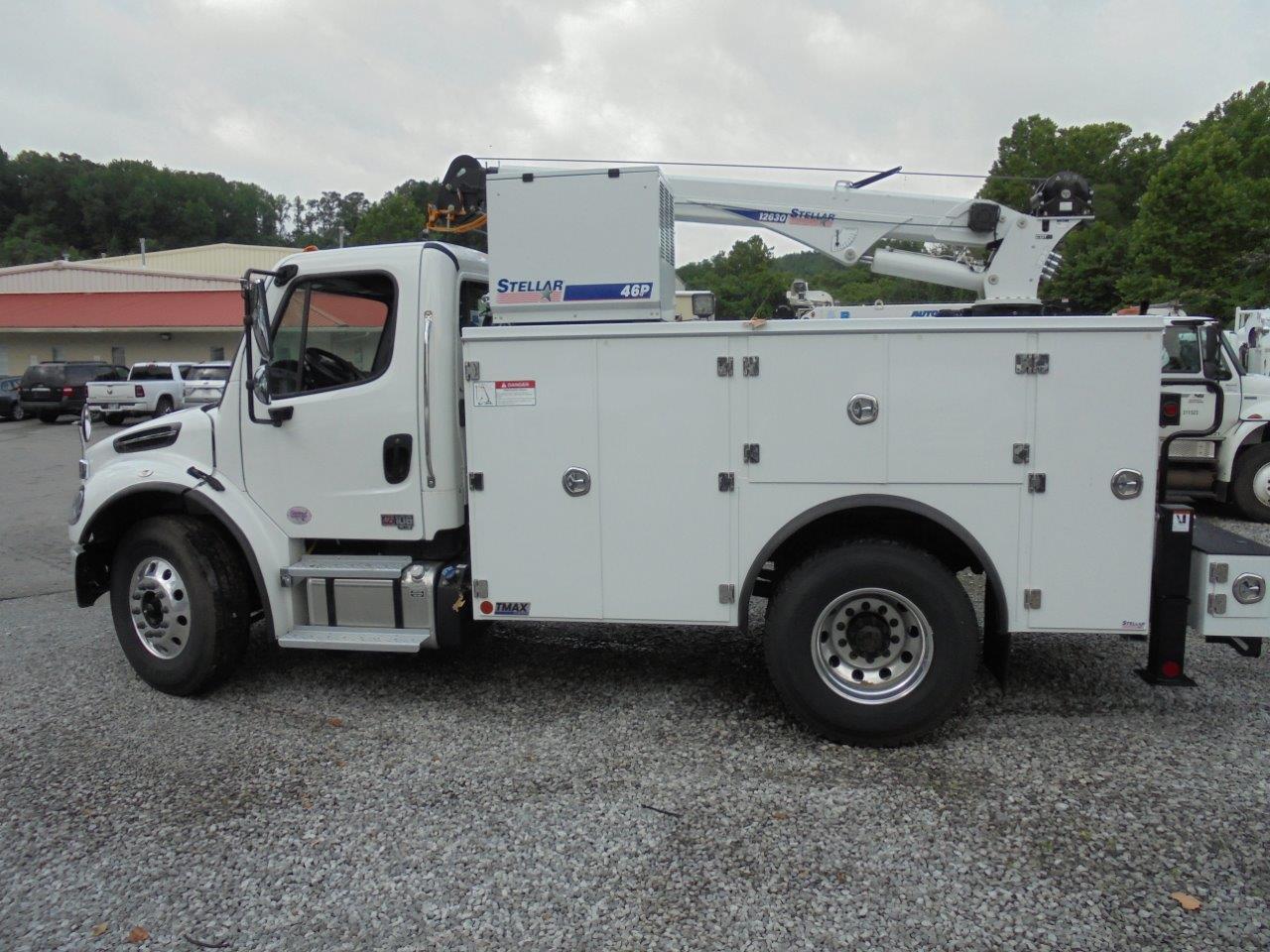

2024 Freightliner M2 106 (26K GVW)
VIN: 3ALACWFC6SDWC1463
Stellar TMAX2-11 Aluminum Body
Stellar 12630 Telescopic Crane
American Eagle 46P compressor
Stellar TMax2 11ft. Aluminum Body
• Aluminum Side Packs, Aluminum Doors
• Steel Crane Compartment
• All compartments raised to 60″
• Flush front bulkhead
• Torsion box understructure with isolated crane compartment to accommodate cranes up to Stellar 12630
• Master-Lock system standard
• Exterior LED DOT light package
• 22″0 X 60″H side packs, 133″ long
• 21″ work bench bumper with thru compartment
• Six (6) recessed cargo tie-downs
• Two (2) rear mounted grab handles, dual-seal automotive type compartment weather seal
• Rubber fenderettes
• Overlapped doors on SS1V, CS1V
• Overlapped doors on horizontal compartments
• 12″ fold down aluminum tailgate (painted black), 2 & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Pintle hitch mount
• Prime painted, undercoated
• Mounting kit for TMAX2 – all lengths
Equipment/ Options
• Stellar 46P hydraulic driven air compressor that produces 46CFM at 175PSI
• 4 cylinder 2 stage compressor
• Direct drive coupling
• Oil cooler, fan, and hydraulic motor
• Includes steel base, enclosure, and flip up lid
• Dimensions: 34.5”L x 26”W x 29.5”H.
• Weight: 589 lbs (dry)
• Air compressor mounting kit to common rail on aluminum bodies for 46P/70P/45R/65R air compressors
Air Options
• 22 gallon air tank with fittings, hose kit, mounting brackets, for Ford/lH TS and TMAX2 chassis, painted black
• FLR System – 1 outlet for air hose (filter, lubricator, regulator)
Hydraulic Options
• Hydraulic reservoir
• 35 gallon tank, bulkhead mounted for Stellar body, painted back
SS1VF
• Heavy Duty Aluminum Drawer set, 35.5″H x 34″W x 18″D, 3-3″, 3-5″, 1-7″ (incl. 2.5″ riser)
SS1VR
• Shelf with (3) dividers 17.63″W x 19.00″D
SS Horizontal
• Shelf with (3) dividers 52.44″W x 19.00″D
SS Rear
• Shelf with (3) dividers 24.38″W x 19.00″D. Installed
CS1V
• Divider kit with shelves 19.00 wide for oxy/acet in curb side 52″ and 60″ compartments. Installed
• Oxy-Acet Bottle Holder ASM – 2 Bottle Holder. Installed
CS2V
• Shelf with (3) dividers 21″W x 19.00″D. Installed
CS Rear
• 1/2″ x 50′ hose reel with roller guide – exits rear of body. Installed
Body Mounted Options
• Rock guard kit – Adhesive black, price included in price of body
• Grab Handle – mounts to rear side pack and bumper – easily accessible from ground
• One pair Stellar mud flaps with mounting bolts
• TMAX Aluminum Tailgate – 12″ Tall, painted black with bed liner on load bed side and 3″ lip on the outside. Price of painted tailgate included in body, price is for bed liner
• Adjustable Boom Support – Octagon Booms – 33.5″ to 51.5″ – TMAX Aluminum Body ONLY – Roller Rest, painted black
Bumper Mounted Options
• Vise mounting plate – Receiver work bench mount (included with TMAX mechanics bodies). Installed
• Step, slide out for TMAX mechanics work bench bumper
• Rear stabilizer up to 92,000 ft-lbs, hydraulic out/hydraulic down – for installation in bumper of Stellar TMAX 2 or equivalent body, painted black
Light Options
• LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box) – TMAX Aluminum Body ONLY
• LED Compartment Light Kit – TMAX30K-11, TMAX1-11, TMAX2-11
Safety Options
• Chassis Mounted Back Up Alarm – 107 Db – Installed
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit
Chassis Options
• Leaf springs, installed on crane side of chassis. (Also use for newer GM 5500 and International CV chassis)
Electrical Options
• Speed Control kit – Ford F650 – 750 chassis 2020 and newer, includes start/stop functionality
• E-Link 2.0 Basic – Cab Mounted / Rear Mounted Manual Switches (Includes body harness and PDM)
• Dash Mount Kit – E-Link Basic/VEC
Pump & PTO Options
• PTO for automatic transmission for Ford (4 x 2 or 4 x 4)
• Hydraulic pump, tandem section for crane and compressor
• Includes tandem pump
Paint & Finish
• Paint 9′-12′ body Stellar White Paint, Axalta paint code 350407EX
• Spray on bed liner for load bed walls and floor – Black
• Spray on bed liner for work bench bumper – Black
Stellar 12630 Telescopic Crane
• 77,800 ft/lb rated, 12,000 lb. maximum capacity
• 30′ full hydraulic reach
• CDTpro™ equipped proportional radio remote control. Installed.
• Crane Boom Tip Slim Light (New CDTpro Cranes Only) – Gravity Rotating
• Dual LED Trilliant Lights For Bar Style Flip Sheave. Installed
Miscellaneous Items included:
• Crane Inspection
• DOT Inspection
• Mud Flaps
• Wheel Covers
2024 Freightliner M2 106 Chassis
• 25,999 GVWR
• 4×2
• 84CA
